Diagram exhaust systems hide in plain sight under every vehicle on the road, yet most drivers never take a moment to understand how the pieces connect. Once you study the full layout, you start noticing warning signs long before a mechanic ever points them out. Years of chasing rattles and leaks under cars have taught me that this system rewards a little curiosity.

Below, I break down every component of the setup the way I would explain it to a friend standing next to me in the garage. Short sections make this easier to follow, and each one focuses on a single part of the journey exhaust gases take from the engine to the open air.

Where the Exhaust Journey Begins: The Manifold

The journey starts right at the engine, where the manifold collects hot gases the moment they leave each cylinder. Builders shape this part from cast iron or steel, and some shops still use fabricated tubing when a custom header design calls for it.

Everything joins together with flange connectors and a tight bolt pattern along the exhaust side of the block. A good manifold gasket keeps a gas-tight seal in place so exhaust gases don’t leak before reaching the common outlet.

This differs from the intake manifold, which pulls air in rather than pushing gases out. In any diagram exhaust reference, the arrangement of pipes per cylinder determines how well the whole car breathes, and pipe length affects collection efficiency. Some early manifold designs even house a catalyst inside.

Flex Pipe and Downpipe: The Next Stop in the Path

Right after the manifold, the downpipe takes over and carries gases toward the catalytic converter. Its main function is connecting the engine to the rest of the exhaust system without transferring stress along the way.

Many cars, especially those with front-wheel-drive or transverse engine layouts, include a flexi section that absorbs engine movement. This articulated part prevents damage and vibration cracks near the main cat.

Some setups also use pre-cats, smaller catalytic converters placed before the main cat further down the line. This engine arrangement lets the flex pipe move freely rather than fighting against the rest of the pipe.

Catalytic Converters: The Chemistry Hub of Any Diagram Exhaust

Once gases reach the catalytic converter, real chemistry starts happening inside that honeycomb structure. Catalysts work to break down harmful compounds and turn toxic gases into safer ones as they pass through.

The cat converts carbon monoxide into carbon dioxide. It splits nitrogen oxides into nitrogen and oxygen, which are harmless once separated, and changes unburnt hydrocarbons into CO2 and water before release.

A lambda sensor, also known as an oxygen sensor, keeps watch over this whole process. If the surface area inside stops handling emissions properly, an engine warning light flashes on the dashboard, and only an OBD scanner confirms whether the converter is truly the cause.

Oxygen Sensors and Their Role in the Layout

The O2 sensors work quietly but carry a big responsibility. They constantly detect oxygen levels inside the exhaust stream and send that information straight to the engine computer.

This data gets used for fuel control, helping the engine’s computer adjust the mixture in real time. The same reading also lets the system monitor converter efficiency without needing any extra hardware.

I always tell people a worn O2 sensor is one of the cheapest fixes that saves the most fuel. Once the converter loses accurate feedback, efficiency drops fast, and that shows up clearly during any close inspection.

Isolators, Gaskets, and Clamps: Small Parts, Big Job

Small parts often get overlooked, but isolators, gaskets, and clamps hold the entire exhaust system together and stop leaks before they start. These accessories handle sealing at every joint along the line.

Without proper durability built into the rubber and metal, the whole system starts rattling within a year. I have replaced worn isolators more times than I can count.

It always amazes me how much quieter a car runs once fresh clamps go back on. Any detailed breakdown of the system should highlight these small parts, since they quietly prevent bigger problems down the road.

Resonator Assemblies and Pipe Accessories

Resonator assemblies exist to combine smart pipe routing with tuning technologies, shaping both sound and performance in one piece. Engineers rely on these accessories to manage acoustics while keeping airflow moving without restriction.

A well-tuned resonator changes the entire character of an engine’s voice. That balance between flow and tone is something enthusiasts chase for years, and it shows up as a distinct section on almost every diagram exhaust chart.

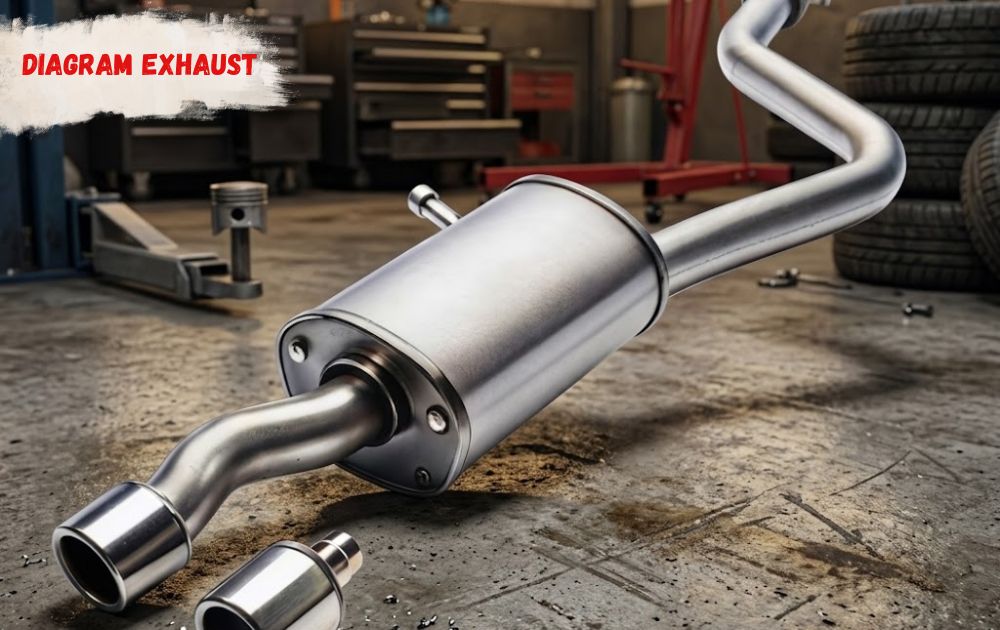

Mufflers and Muffler Assemblies

The muffler sits near the end of the line, and its whole job is quieting the roar of a vehicle engine before emissions pass into the open air. Muffler assemblies use internal baffles to control sound without choking performance.

That balance is something every automaker fights to perfect. A cracked muffler turns a smooth ride into an embarrassing rumble, so I always recommend checking this part first when a car suddenly sounds louder than usual.

DPF Systems: Diesel and Petrol Particulate Filters

Modern diesel cars, and increasingly petrol engines too, rely on a particulate filter known as a DPF. In some markets it’s called an OPF, a gasoline particulate filter, or an otto partikelfilter.

This filter traps soot and other harmful particles using mesh and honeycomb screens until it becomes blocked. At that point, the ECU raises exhaust gas temperatures and starts a regeneration cycle that burns particulates into harmless ash.

Drivers sometimes notice engine hesitation during this process, a faint burning smell, or cooling fans running longer than normal. If clogging persists, especially from short trips, a diagnostic tool can trigger a forced regen, though a replacement DPF eventually becomes necessary once exhaust flow can’t recover.

The Centre Section in a Diagram Exhaust Layout

The centre section usually sits between the front pipe and the back box, and in many designs it comes as one piece with the rear sections. Wear rarely happens evenly across both parts.

Inside, at least one silencer works to quieten engine noise, using an internal box filled with pipes and sometimes wadding for extra sound absorption. Too many silencers can restrict flow and hurt performance efficiency.

If you ever need to cut and join a new section, matching the original exhaust note matters just as much as fixing the pipes themselves. This is one of the trickiest parts to get right on any exhaust repair.

Back Box: Where the Path Ends

At the very rear, the back box houses the final silencer and connects to one or more tailpipes through a sleeved fitting. This part shapes the sound leaving the exhaust system.

The design and size of the tailpipe change the tone dramatically between a stock setup and an aftermarket one. It links back to the centre section at the rear, completing the path gases have traveled since the engine.

Exhaust Hangers: The Support System

Every exhaust needs support, and that’s where exhaust hangers come in. Made from rubber or polyurethane, they absorb the constant movement happening while you drive.

Without them, engine mounts alone couldn’t stop the underside of the pipe from cracking, since unchecked movement leads straight to damage. I always check these hangers during routine service.

A suspended exhaust that isn’t properly bolted or held will eventually fail an annual inspection. Inspecting the full system periodically saves both money and hassle down the road.

Subaru Impreza Model-Specific Diagram Exhaust Layouts

Anyone who has worked on a Subaru Impreza knows the exhaust manifold and uppipe layout changed across generations. The GC8 Classic models from 1993 to 2000 used mild steel with a wide bore size and a simple turbo-back design.

The New Age 2001 to 2005 WRX and STI switched to a shorter downpipe and added a dedicated catpipe. The Blobeye and Hawkeye models from 2006 to 2007, along with the later Hatchback and Saloon versions from 2008 to 2013, refined the rear silencer and centre section even further, right through to the 2014 to 2019 STI.

Every generation used gaskets and bolts at each joint and relied on rubber mounts and hangers to keep everything steady. WRX trims typically kept a single exit tailpipe, while STI versions moved to twin or quad exit configurations, all while meeting strict emission regulations whether the parts came through official channels or as JDM imports.

Why Learning to Read a Diagram Exhaust Layout Saves Money

Most drivers only think about their exhaust when something goes wrong, but a little proactive knowledge changes that habit completely. When you can look at the layout and name each part, a strange noise stops being scary and starts being a clue.

Mechanics often charge a diagnostic fee just to point out what section is failing. If you already know the manifold sits closest to the engine, or that the back box handles the final sound, you can describe the problem accurately over the phone before you even book an appointment.

This kind of knowledge also helps when buying a used car. Crawling underneath with a flashlight and comparing what you see to a diagram exhaust reference tells you instantly whether the system is original, patched together, or recently replaced with aftermarket parts.

Sellers rarely mention exhaust condition upfront, so a buyer who already knows the difference between a factory manifold and a welded repair has real negotiating leverage. Even a five-minute look underneath can reveal whether a car has been well cared for or quietly patched to pass inspection.

Insurance and warranty claims also move faster when you can describe the exact section that failed. Instead of saying “something under the car is loose,” naming the isolator, the hanger, or the centre section gets you a faster, more accurate quote.

Common Signs Your Exhaust Needs Attention

A rattling noise at idle usually points to a loose heat shield or a worn isolator rather than a serious problem. Checking a diagram exhaust reference at this stage helps you pinpoint exactly which section is loose, and catching this early during a routine inspection prevents a small annoyance from turning into a cracked pipe.

A hissing sound near the front of the car often means a leaking manifold gasket. Because this sits so close to the engine, ignoring it can affect performance and fuel economy far more than a leak further back in the system, which is why the front sections deserve extra attention on any diagram exhaust chart you’re following.

Louder engine noise that develops gradually usually traces back to the muffler or the centre section losing its internal packing. Comparing the sound to how the car used to run is one of the simplest diagnostic tools any owner has, and lining that change up against a diagram exhaust layout makes it much easier to guess the source before a mechanic even looks.

A strong smell of rotten eggs almost always signals a failing catalytic converter. Since this component sits in the middle of the diagram exhaust path, catching the problem early avoids a much more expensive repair bill later, and knowing its exact position on a diagram exhaust guide means you’re never left guessing where to start looking.

How Regular Maintenance Extends the Life of the System

Rust remains the biggest enemy of any exhaust system, especially in regions with harsh winters and road salt, and this is one reason a diagram exhaust reference is so useful for spotting weak points before they fail.

Simple habits, like rinsing the underside of the car occasionally, slow down corrosion across every section shown on a full diagram exhaust chart, from the manifold flange all the way back to the tailpipe tip.

It sounds like a small task, but consistency is what actually protects the metal over years of driving. Short trips are surprisingly hard on the system, since the exhaust never reaches full operating temperature long enough to burn off condensation.

Anyone who studies a diagram exhaust layout closely will notice how much moisture can sit trapped in the lower sections, especially the muffler and centre section, where trapped water quietly eats away at the metal from the inside out.

Taking a longer drive on the highway now and then helps dry out that moisture, and it’s one of the simplest ways to add years of life to a diagram exhaust setup without spending a single dollar.

Routine inspections during an oil change cost nothing extra and catch problems while they’re still cheap to fix. A mechanic lifting the car for five minutes can spot a cracked hanger or a loose clamp long before it becomes a dashboard warning light, and comparing what they find to a diagram exhaust guide makes it easy to explain exactly what needs attention. This small habit turns a routine service into a genuine safeguard for the whole system.

Aftermarket upgrades, from resonator deletes to larger diameter tailpipes, change more than just the sound. Anyone modifying a system should study the full diagram exhaust layout first, since altering one section shifts backpressure and affects how the rest of the parts perform.

A change near the front, like swapping the downpipe, can echo all the way back to the muffler, so understanding the entire diagram exhaust path before touching a wrench prevents costly mistakes.

In the end, caring for an exhaust system isn’t complicated, it just takes a little consistency and a willingness to look underneath the car once in a while.

Whether you’re fighting rust, drying out condensation, or planning an upgrade, keeping a diagram exhaust reference close by turns maintenance from a chore into something you can actually feel good about staying on top of, one section at a time.

Final Thoughts on Reading the Full System

Understanding the layout turns a mysterious tangle of metal under your car into something you can actually diagnose yourself, and this is exactly why a clear diagram exhaust reference is worth keeping saved on your phone.

Every part, from the manifold down to the exhaust hangers, plays a specific role in keeping your engine running clean and quiet, and once you’ve studied a diagram exhaust layout even once, you start seeing the whole system differently every time you pop the hood or crawl underneath.

Think of it this way: a car without this knowledge feels like a locked box, but a diagram exhaust chart hands you the key. Suddenly a strange clunk isn’t scary anymore, it’s just a loose isolator waiting to be tightened.

A hiss isn’t a mystery, it’s a manifold gasket asking for attention. That shift, from confusion to confidence, is the real value a good diagram exhaust guide gives an everyday driver.

The next time your car sounds a little different or a warning light flashes on, you’ll know exactly which section of the diagram exhaust path to check first.

Maybe it’s the catalytic converter struggling with a clogged core, maybe it’s a cracked resonator letting sound escape where it shouldn’t, or maybe it’s simply a hanger that’s finally given out after years of holding steady. Whatever it is, a diagram exhaust breakdown turns guesswork into a short checklist.

And that knowledge alone can save you real money at the shop. Mechanics charge less to fix a named problem than to hunt for an unnamed one, so walking in already knowing your diagram exhaust terminology, whether it’s the downpipe, the centre section, or the back box, puts you back in control of the conversation.

You stop feeling like a bystander watching your bill climb and start feeling like a driver who actually understands the machine underneath them.That’s the quiet gift of learning to read a diagram exhaust layout. It doesn’t just make you a better troubleshooter, it makes every repair feel less intimidating and every strange noise a little less stressful, one part at a time.

FAQs

1. Where can I find an exhaust system diagram PDF?
Most auto parts sites and repair manuals offer a free downloadable diagram exhaust pdf you can save for quick reference.

2. What parts make up a diesel exhaust system?
A diesel exhaust system diagram typically shows the manifold, DPF, catalytic converter, and muffler working together to clean and quiet emissions.

3. What are the names of exhaust system parts?
The main exhaust system parts names include the manifold, downpipe, catalytic converter, resonator, muffler, and tailpipe.

4. What does each exhaust part actually do?
Every exhaust system part and function pairs up, from the manifold collecting gases to the muffler quieting the final sound before it leaves the car.

5. Are Walker exhaust diagrams reliable for repairs?
Yes, Walker exhaust diagrams pdf files are trusted by mechanics for accurate, brand-specific fitment and part identification.
